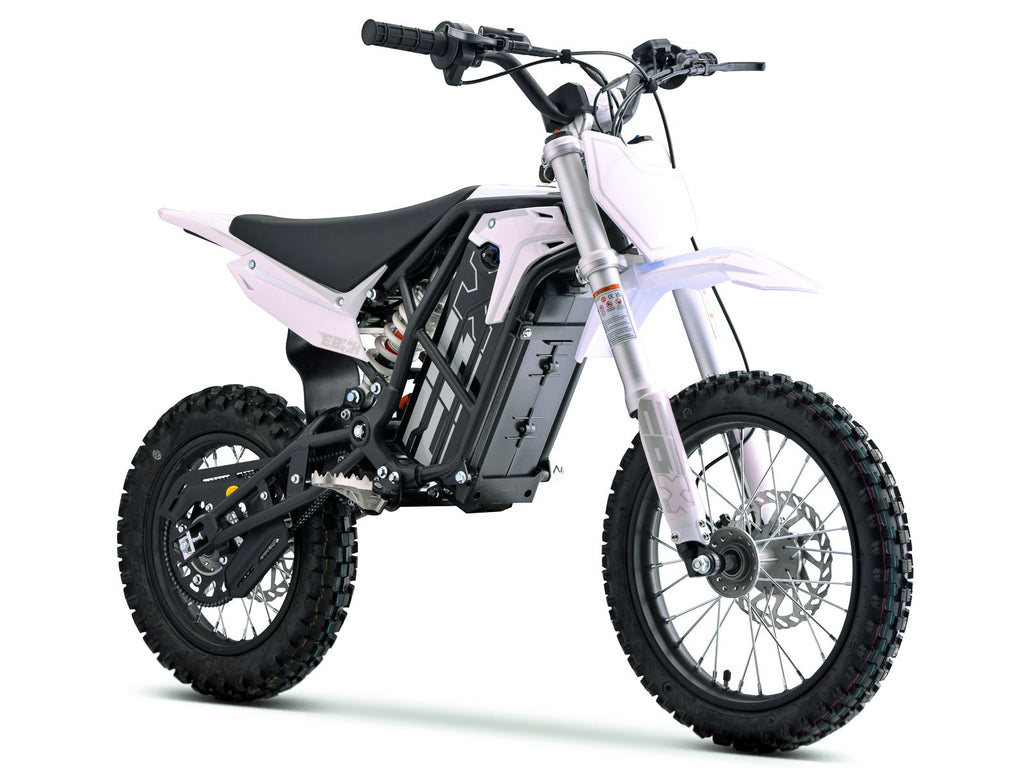

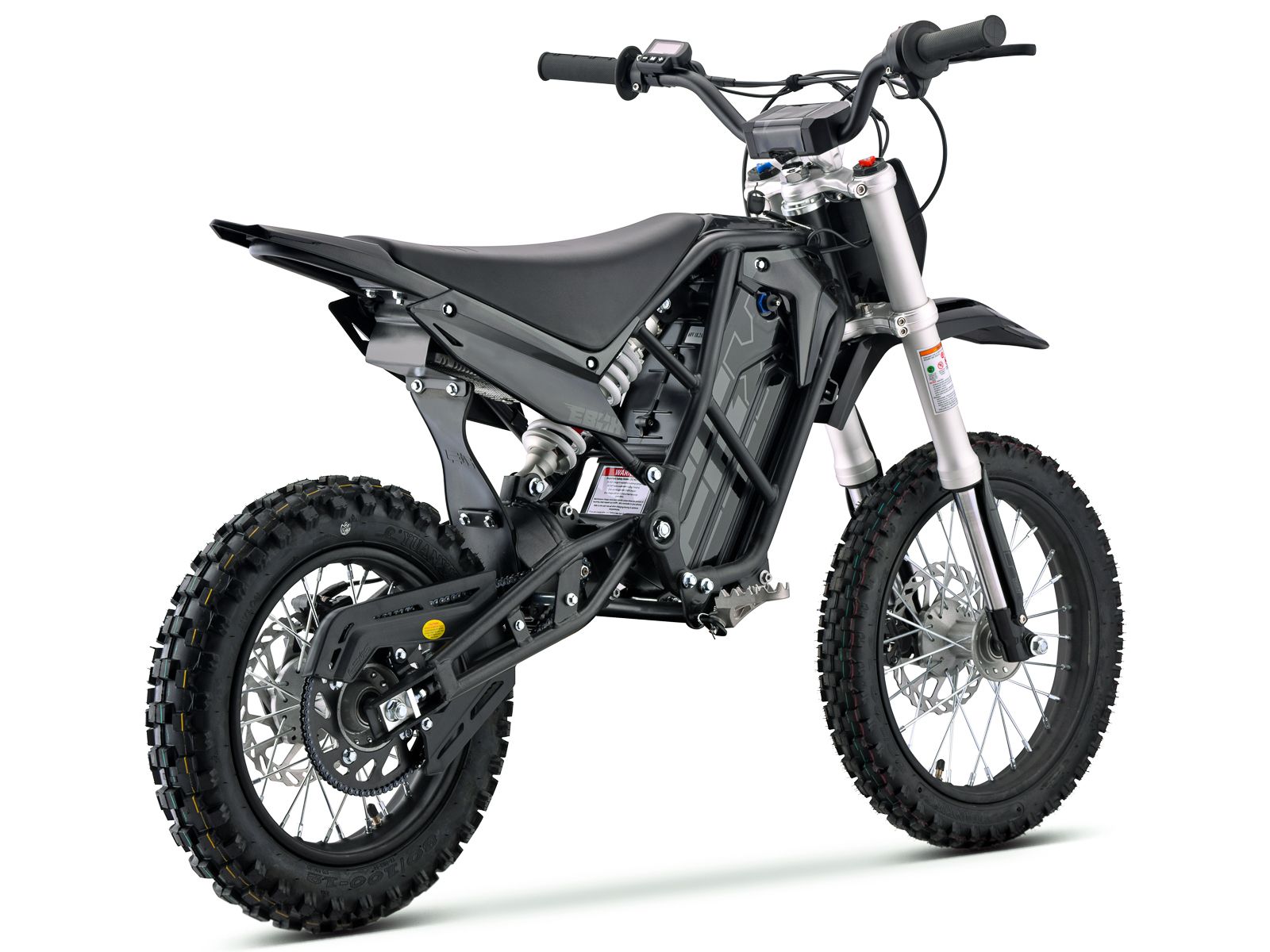

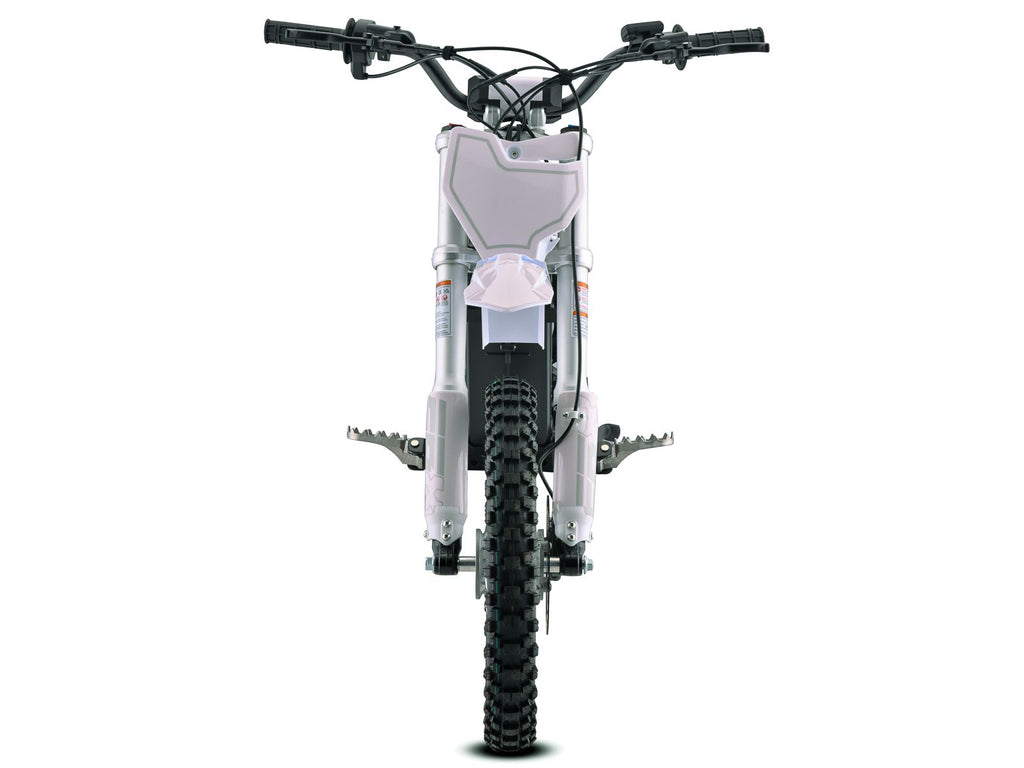

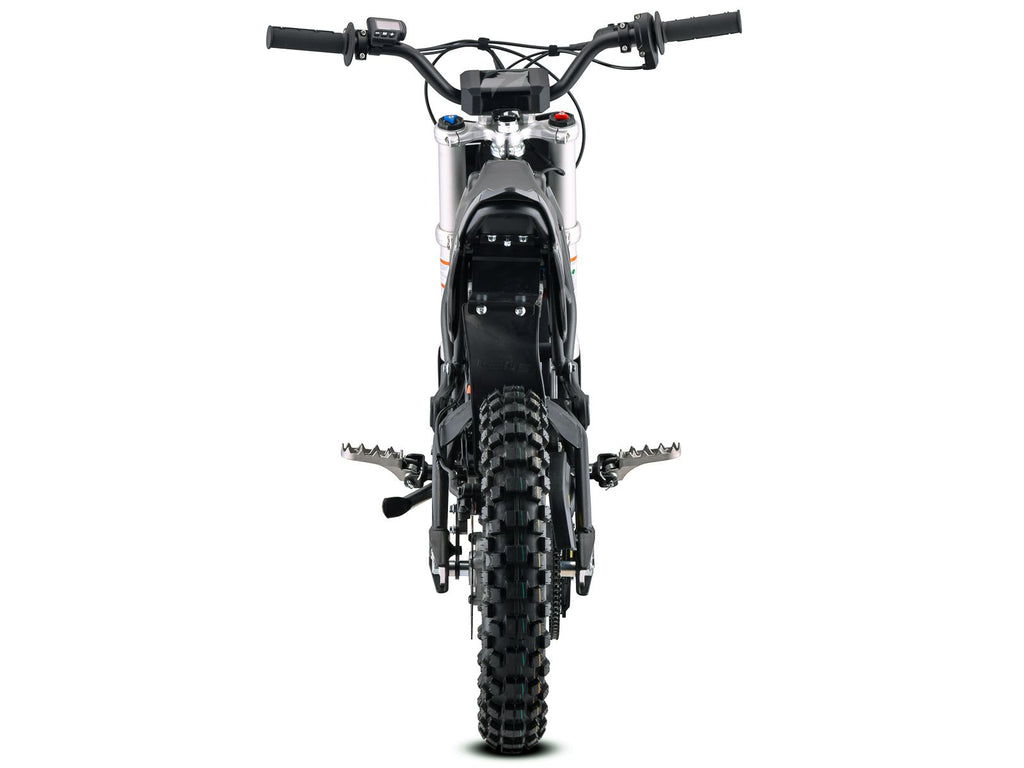

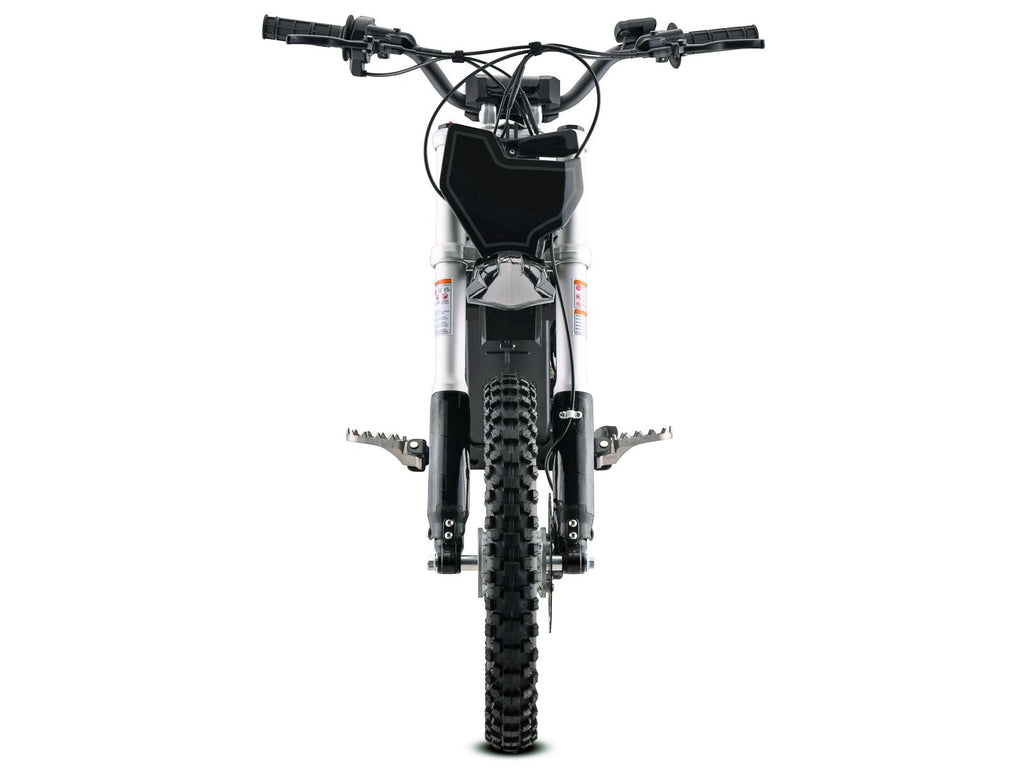

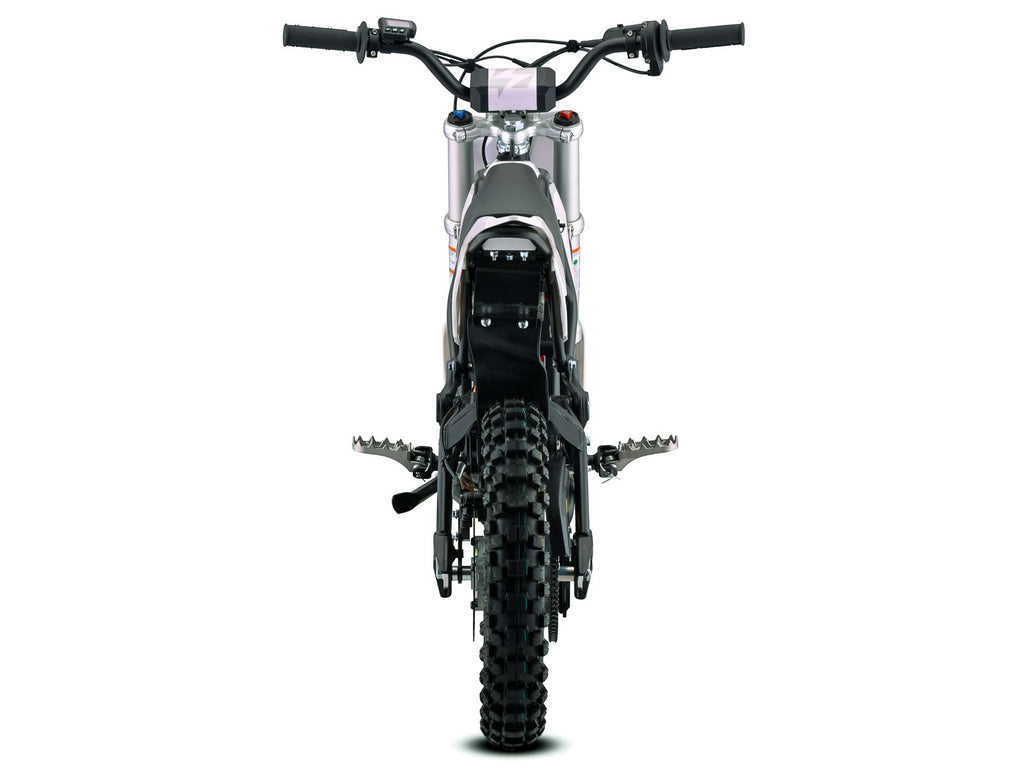

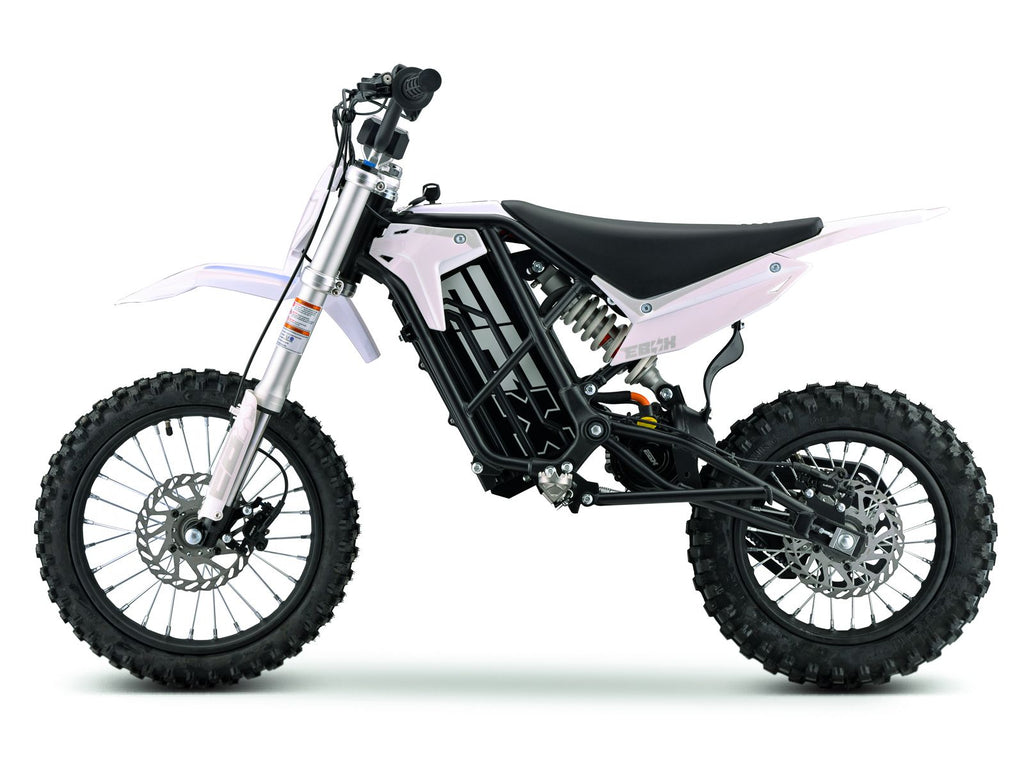

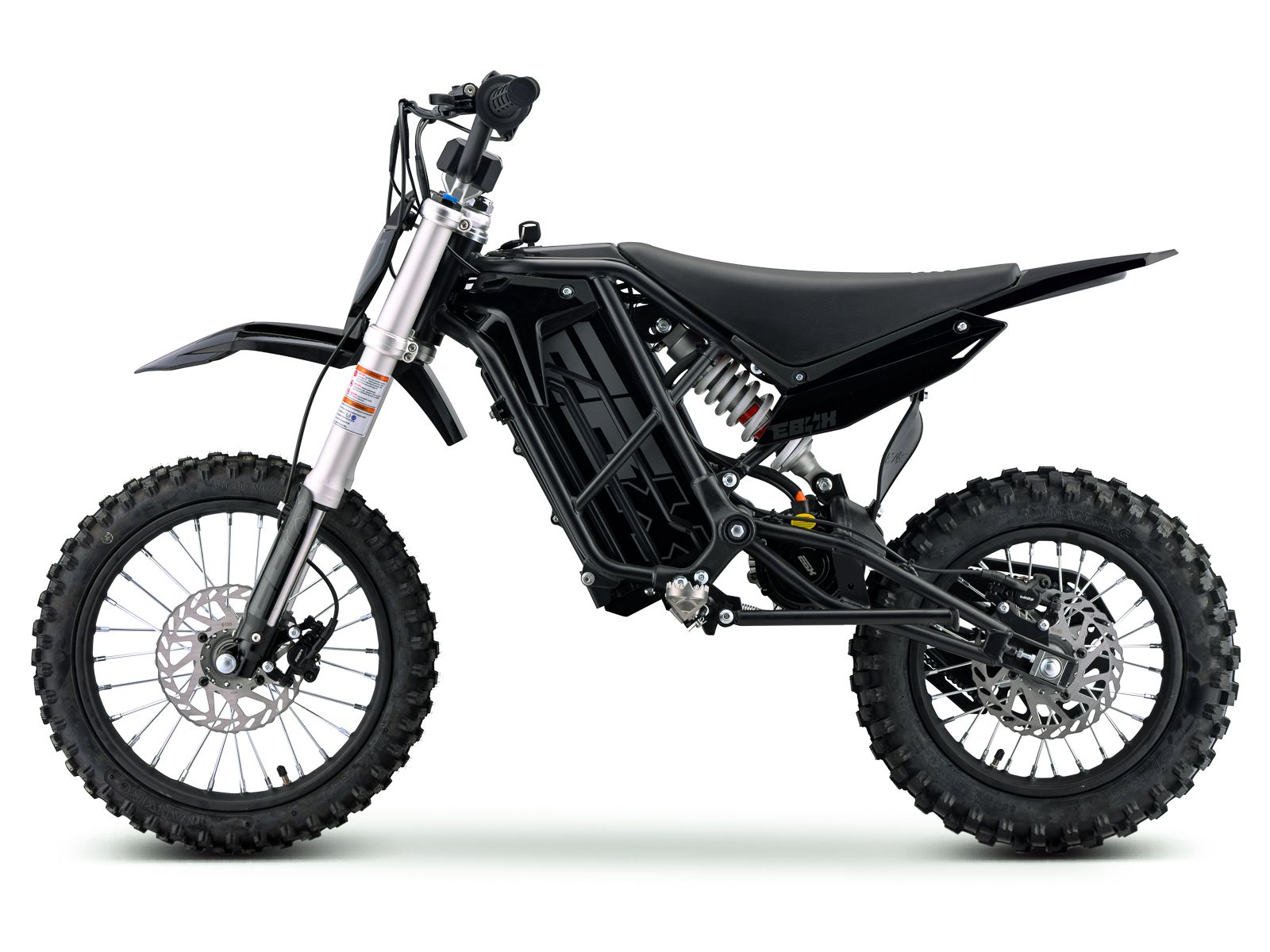

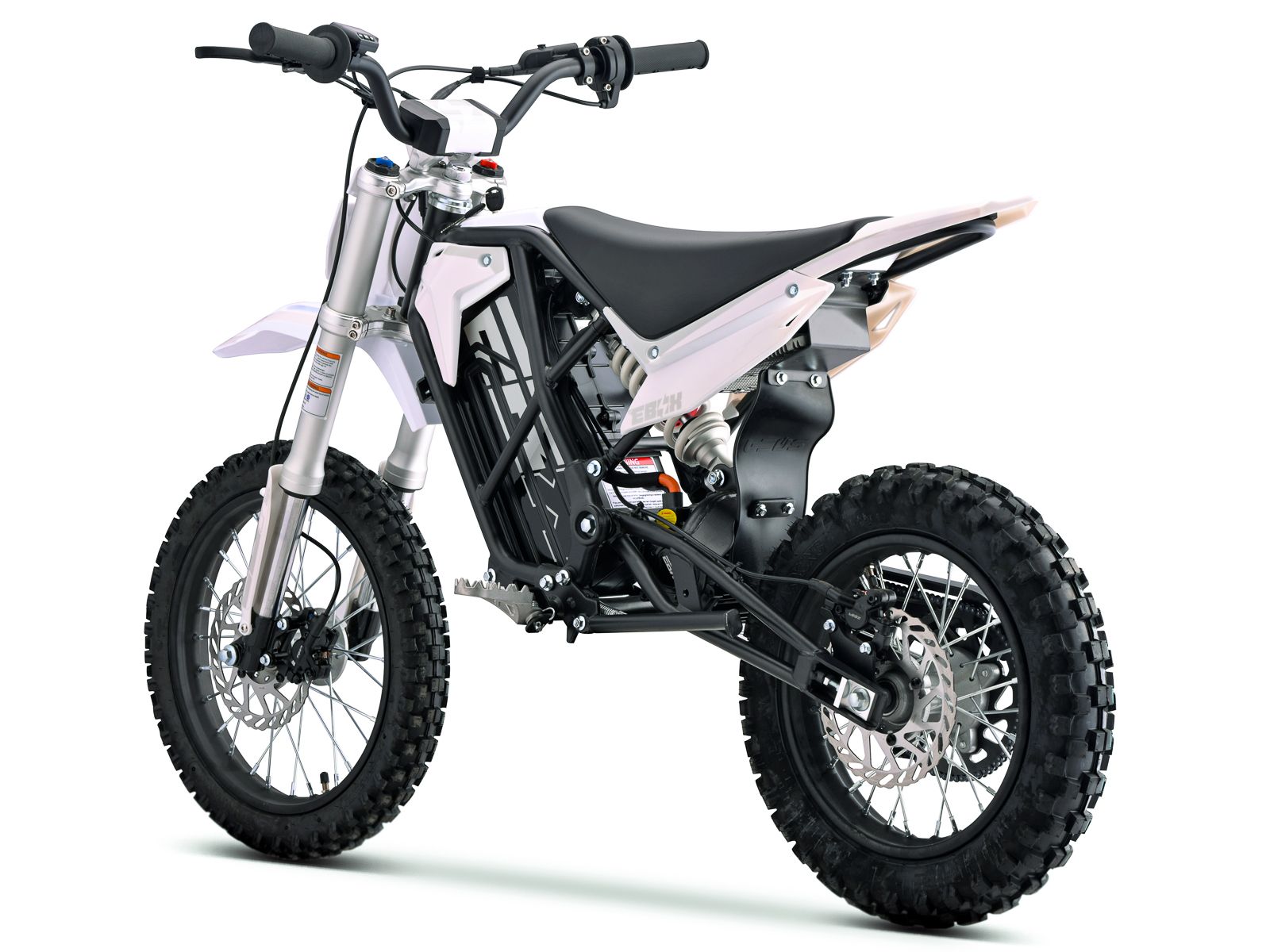

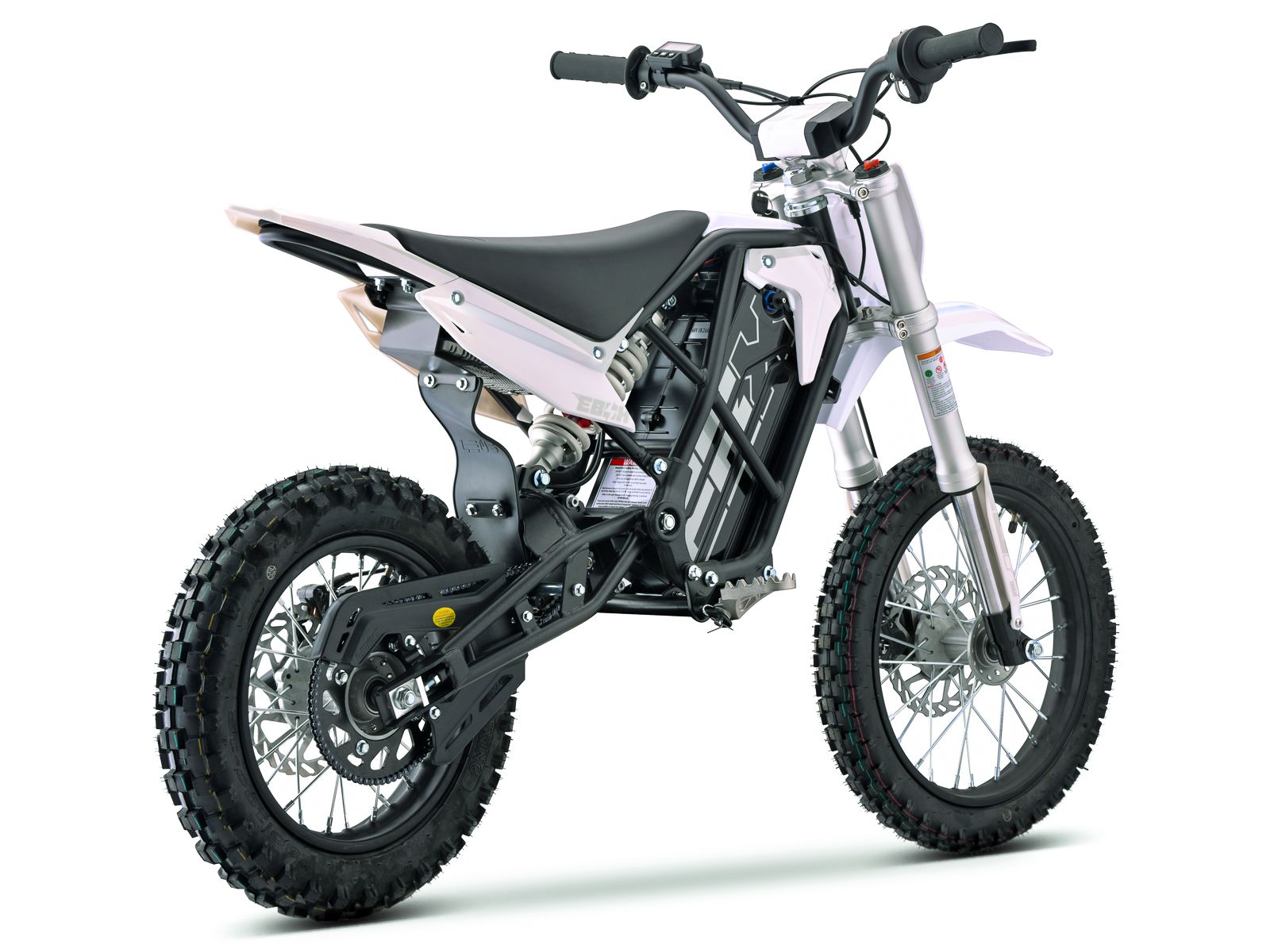

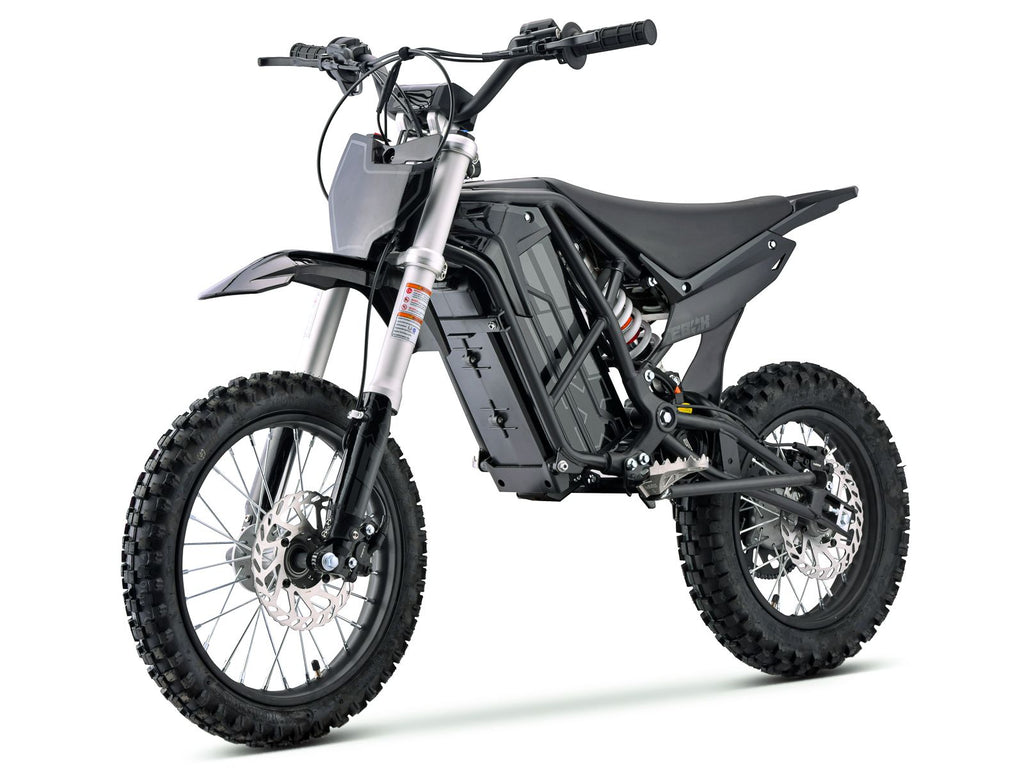

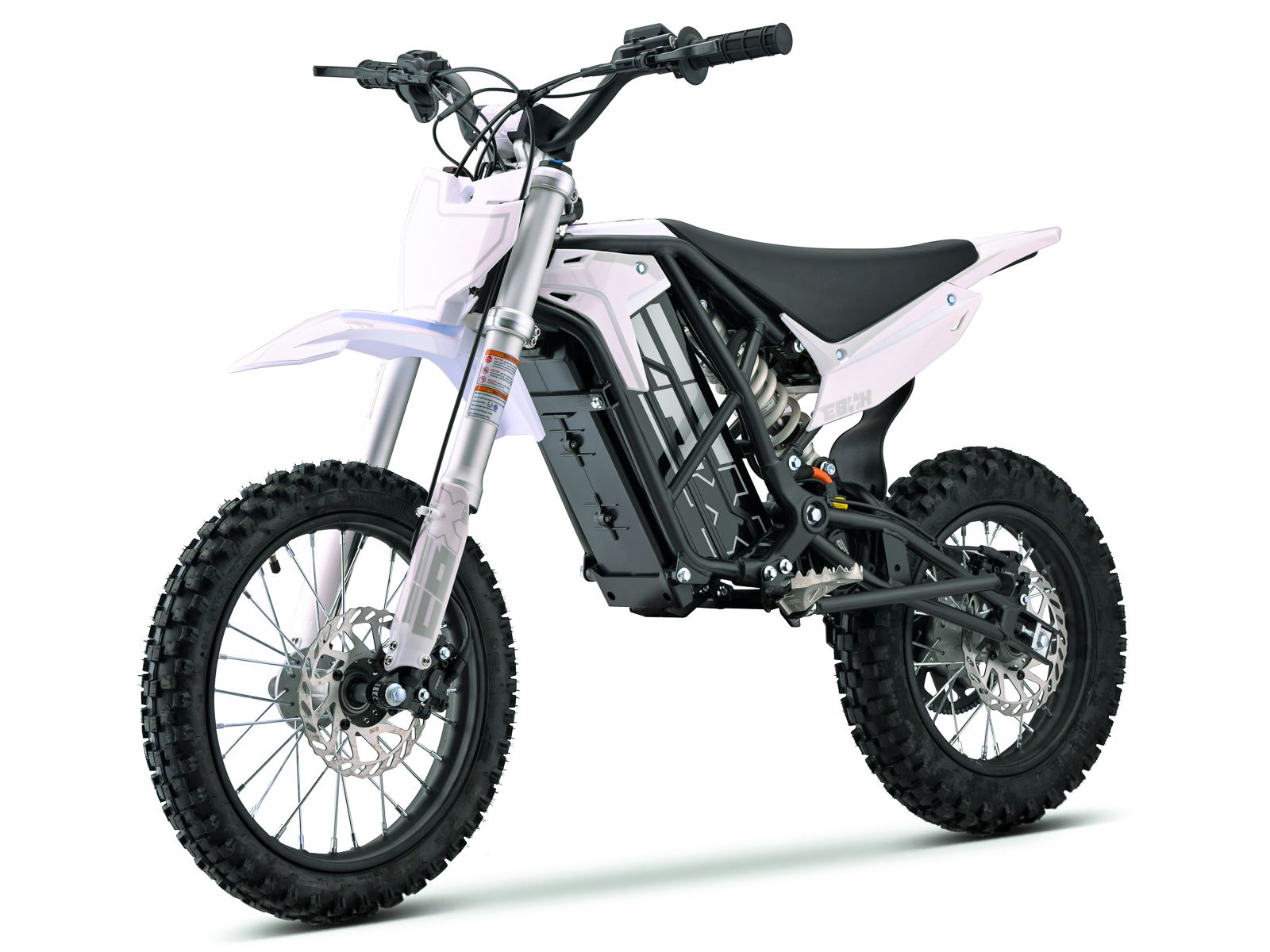

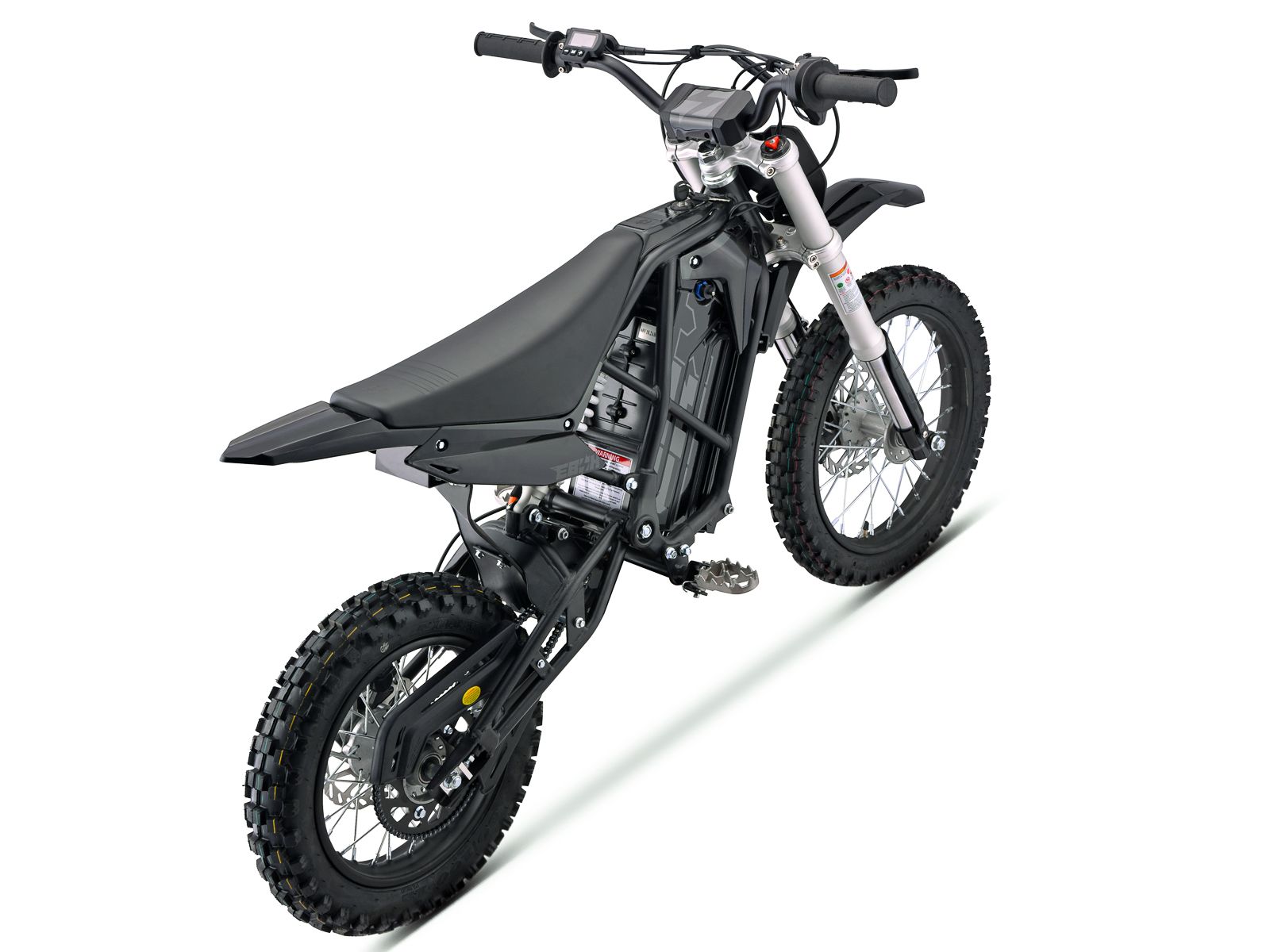

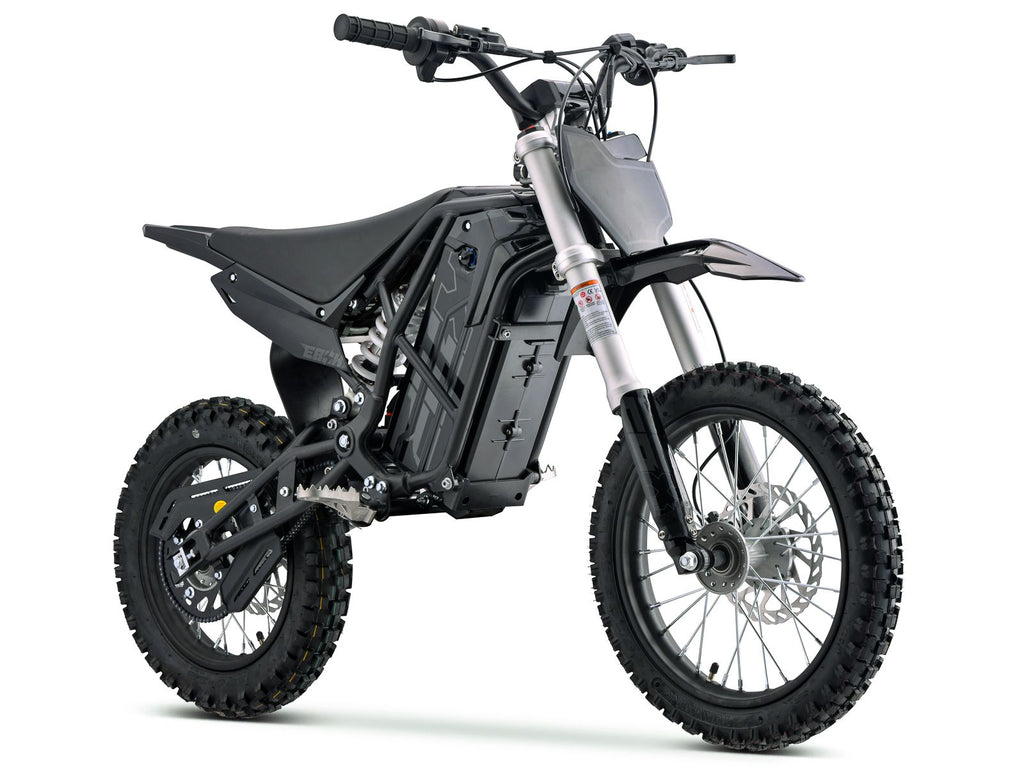

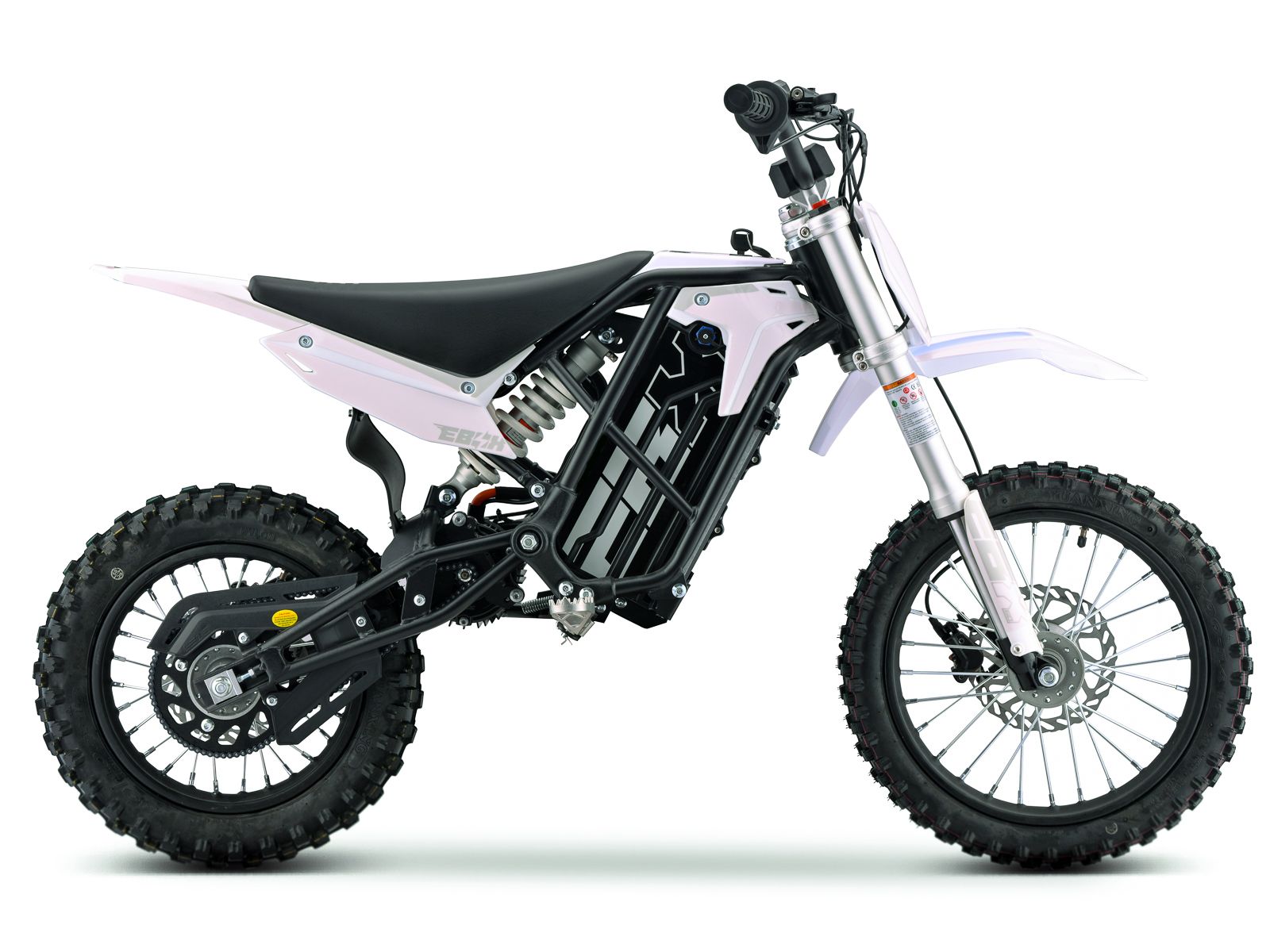

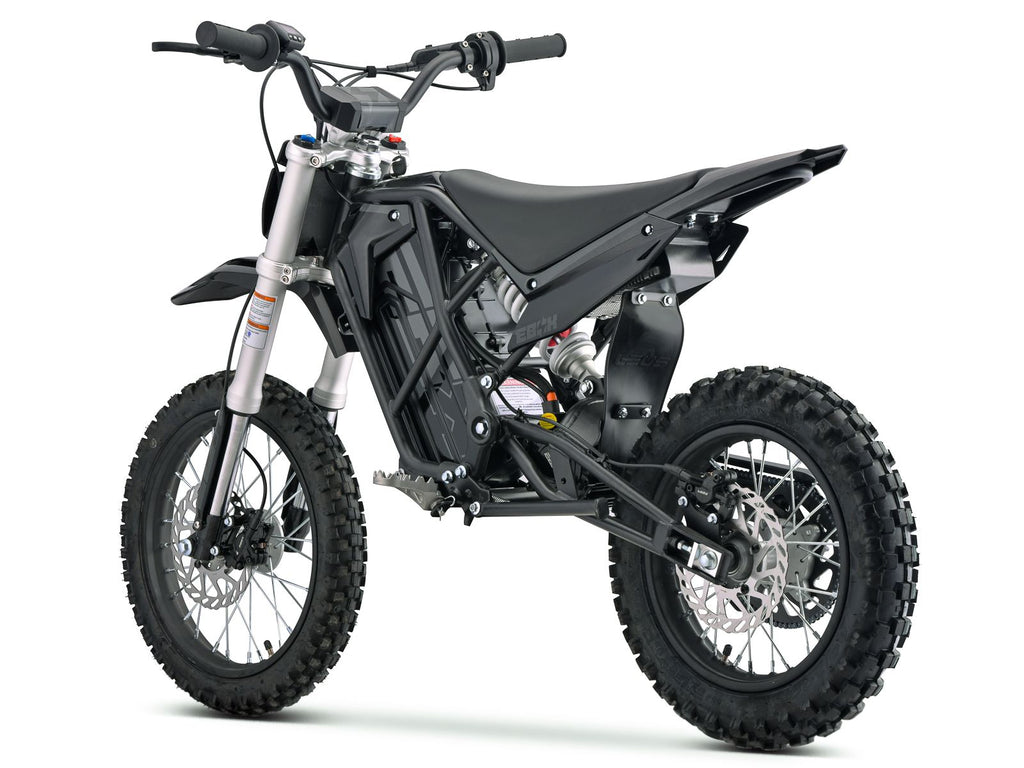

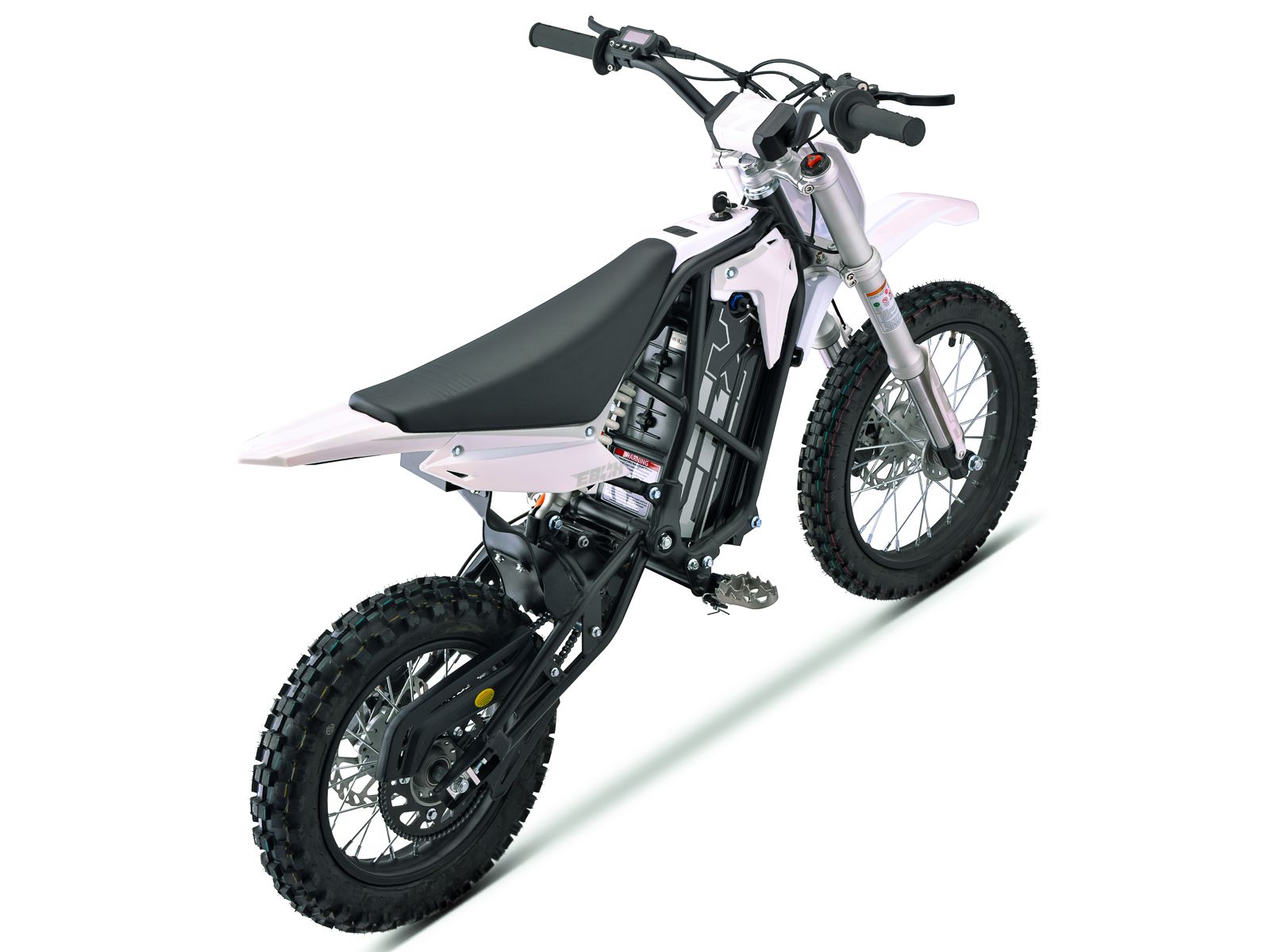

EBOX V3 60V 3300W 60V 18.5 ah LITHIUM Dirt Bike ⚡️⚡️⚡️

EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand-new EBX power train, bigger batteries, a Fardriver 80A controller, and a high-power PMSM motor with encoder and temperature feedback, delivering up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance. Additionally, we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car.

  SPECS

Frame type V3 Double Cradle

Front wheel size 14"

Rear wheel size 12"

Fork 150mm travel USD

Rear Suspension Progressive mono shock 150mm travel

Bar Risers Alloy Cast 36mm rise Ø22.2

Front brake Hyraulic Disc (Right lever) e-moto brakes

Front disc 180mm rotor, 4 bolt

Rear brake Hyraulic Disc (Left lever) e-moto brakes

Rear disc 180mm rotor, 4 bolt

Front tyre 60/100-14 Dirt

Rear tyre 80/100-12 Dirt

Chain 219H 120L

Gearing Front 10T, Rear 70T

Max load 85kg

Handlebar 6061 T6 EBOX High Rise 1pc

Seat EBOX fat seat

Motor 60V EBX PMSM motor with temp feedback and encoder

Rated Power 3.3KW

Peak power 3.7KW (5hp)

Max RPM 7,500

Battery 60v 18.2Ah battery 18,600 cells with QS8 connector and air breaker switch

Controller 80 Amp fardriver controller

Throttle SURRON style full twist

Display TFT odometer display with 3 speed modes and fault code analysis software

Connectors Automotive connectors with sealed wiring harness

Charger AC 100-240V, Output: 67.2V, 3A

  TECH

Charge time 5-6 hours

Range 21-25 miles (35-40Km)

Top speed 45mph (72Km/h)

External adjustability 3 riding modes

Frame construction V3 wide frame (183mm), race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg.

Wheelbase 980mm

Seat height 650mm

Warranty EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
