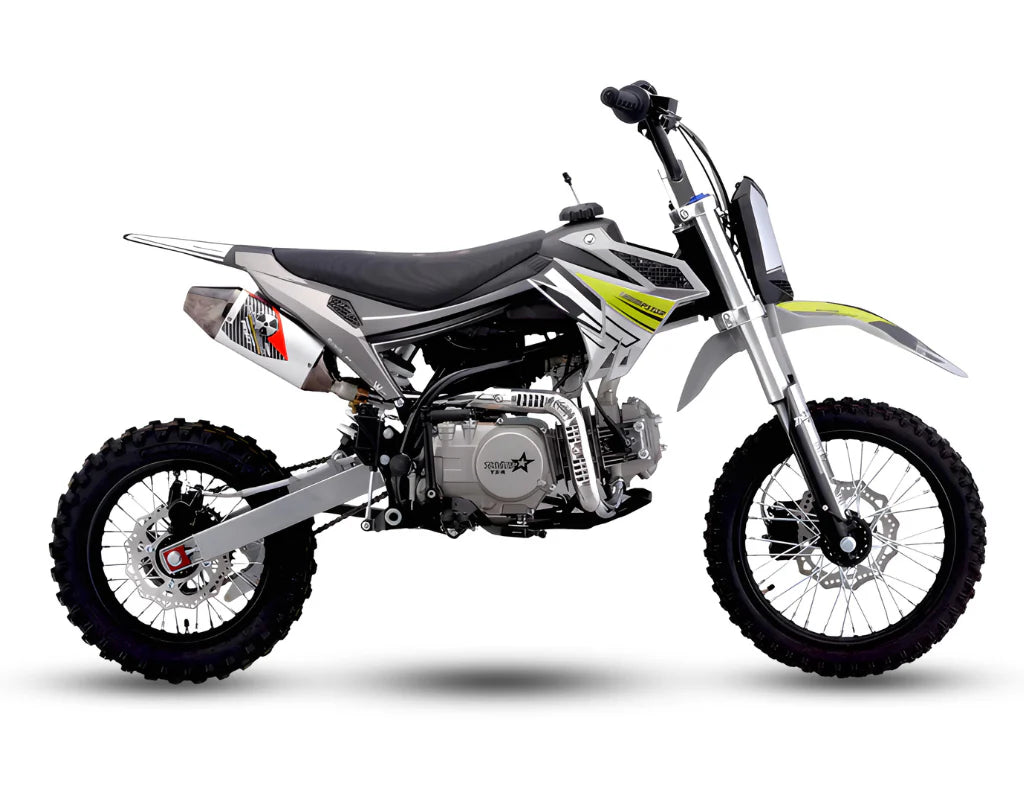

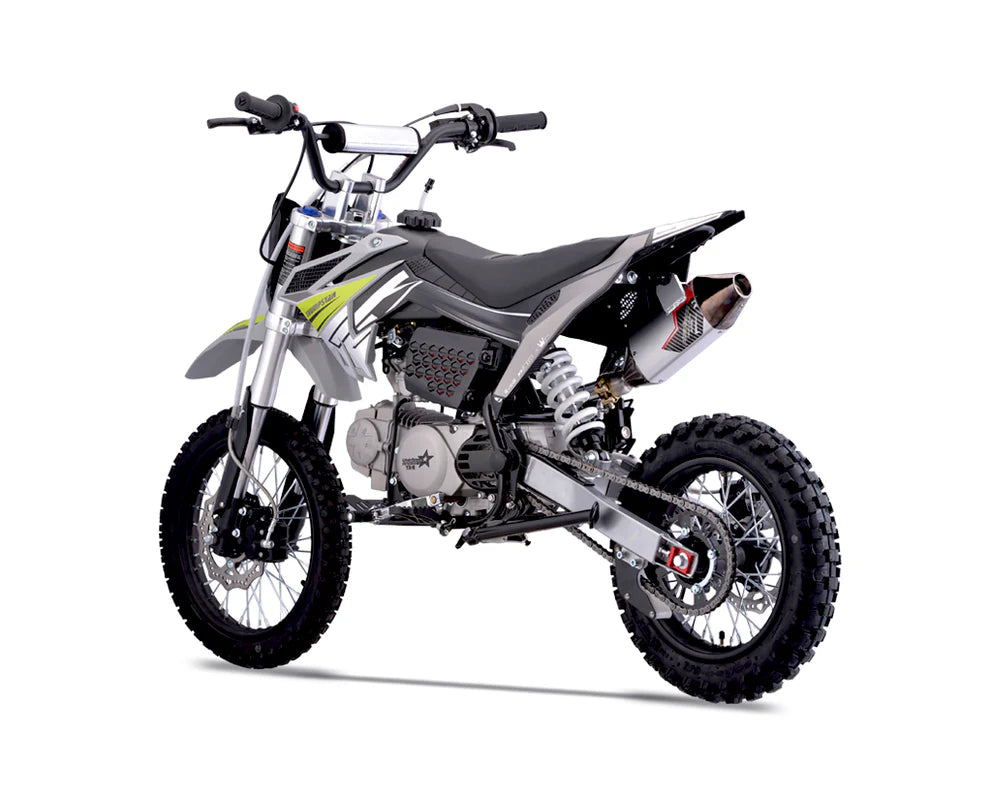

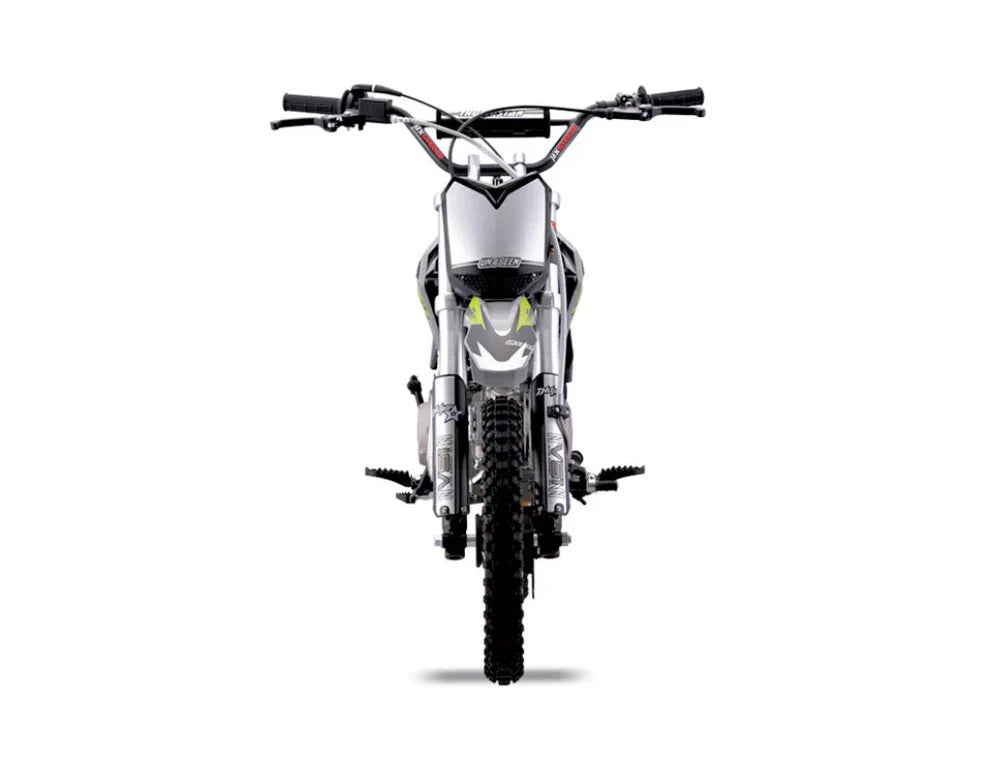

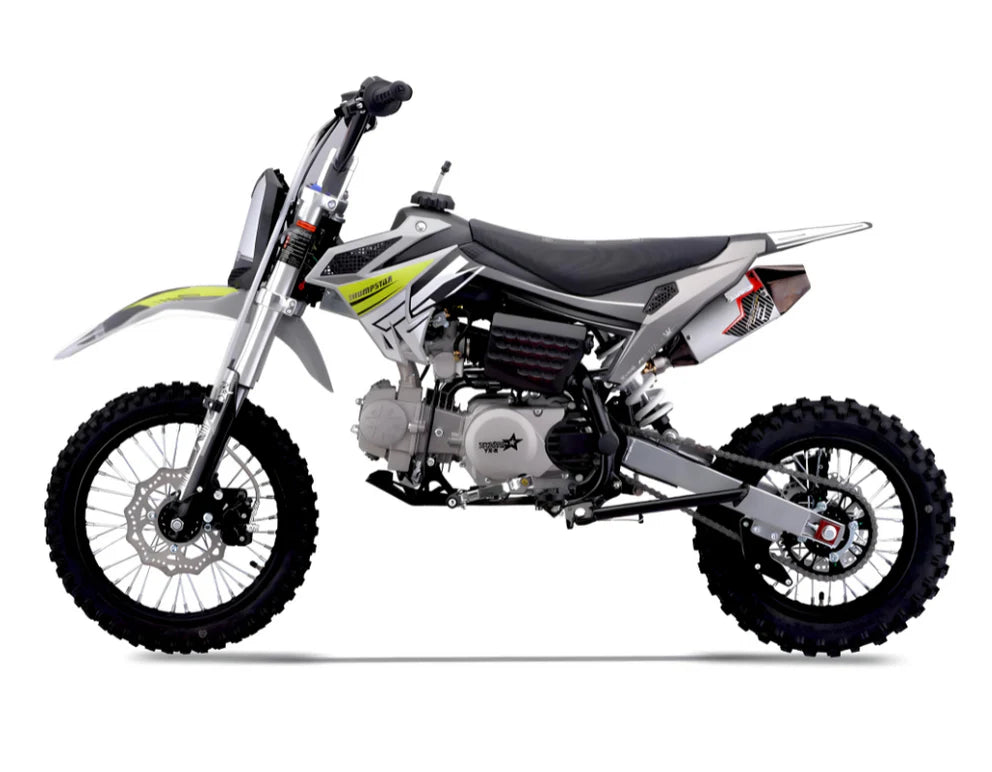

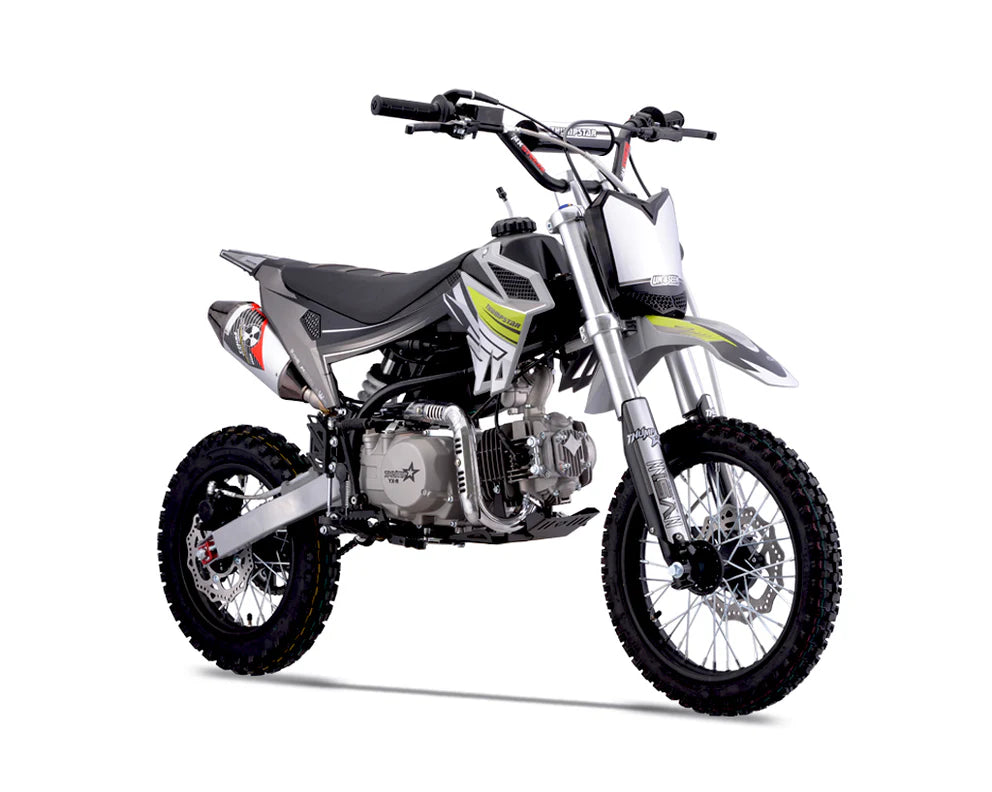

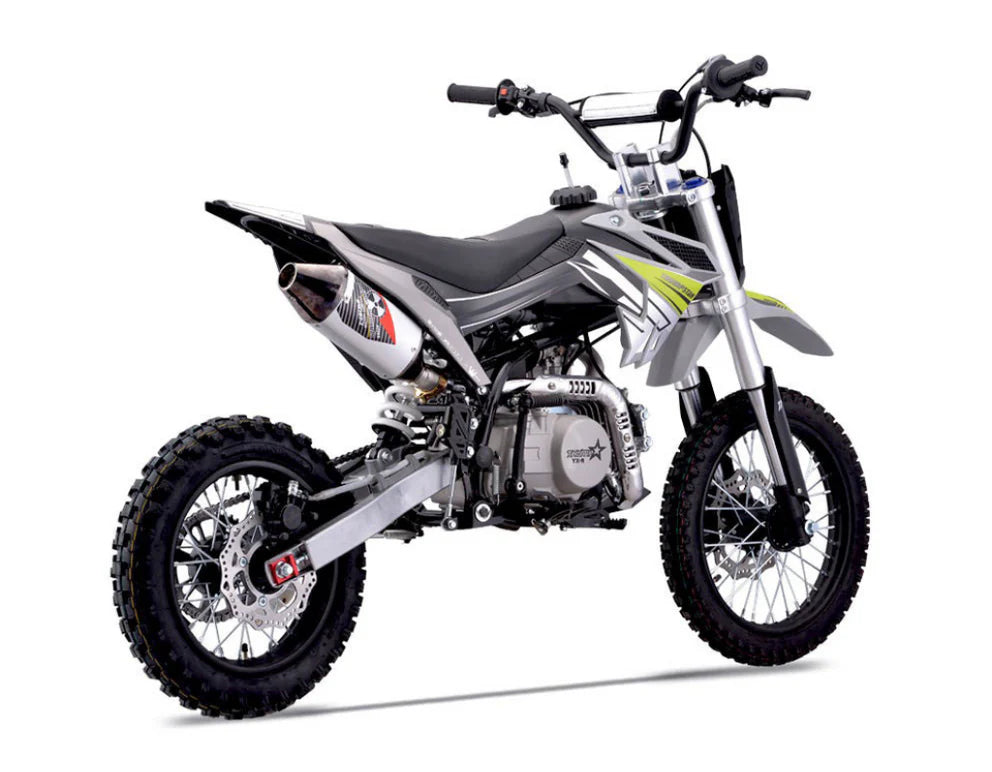

Thumpstar - TSC 140cc B4 Dirt Bike 🤙🤙🤙
Our baseline models have provided our customers with an exceptional package for an affordable price. The TSC140 is nothing short of that. By making changes, which increase the strength of our baseline models, we think we have set the standard for the pitbike industry.
The TSC140 has received our signature stealth plastics which give is a sleek look, and makes it clearly distinguishable from knock-off brands. The frame has been redesigned with a wrap around frame which provides a much stronger package, and accommodates a stronger swing arm.
The 110cc engine offers relliablity, while maintaining the famous TSB value by packing it between our standard frame and basic suspension.

V5 Front Plate
Stylish protection for your ride. Upgrade your bike's look and shield vital components today!
Wrap around Frame
Traditional mini bikes produced by our competitors have a CRF50 style frame. We went back to the drawing board and applied our knowledge from larger, heavier duty bikes. The new TSC140 frame is what we call a wrap-around frame where the swing arm sits between it and the engine, which reduces stress on the bearings and gives the overall system better strength.


Waterproof Wiring
Building a bike that will last has been a main focus of ours since the beginning. This means we have to produce a motorcycle that will stand the test of time and exposure to the elements. We have given the TSC140 the same waterproof wiring system that its bigger brothers, the TSX125 and TSX140, have.
Stator Guard
Rider protection is a feature that we take into consideration when producing any bike. We redesigned our stator guard firstly to protect the rider from any sort of chain grab around the foot, but also to protect the engine should the chain or sprocket malfunction and let go.


New Plastics Stripe Seat
The TSC140 has had a bit of revamp on many levels, we thought since our mid and full size bikes were getting new skins, the TSC140 shouldn't be left out. It has received the full stealth plastics kit accompanied by our new gripper striped seat, giving a sleek and stealthy new look.

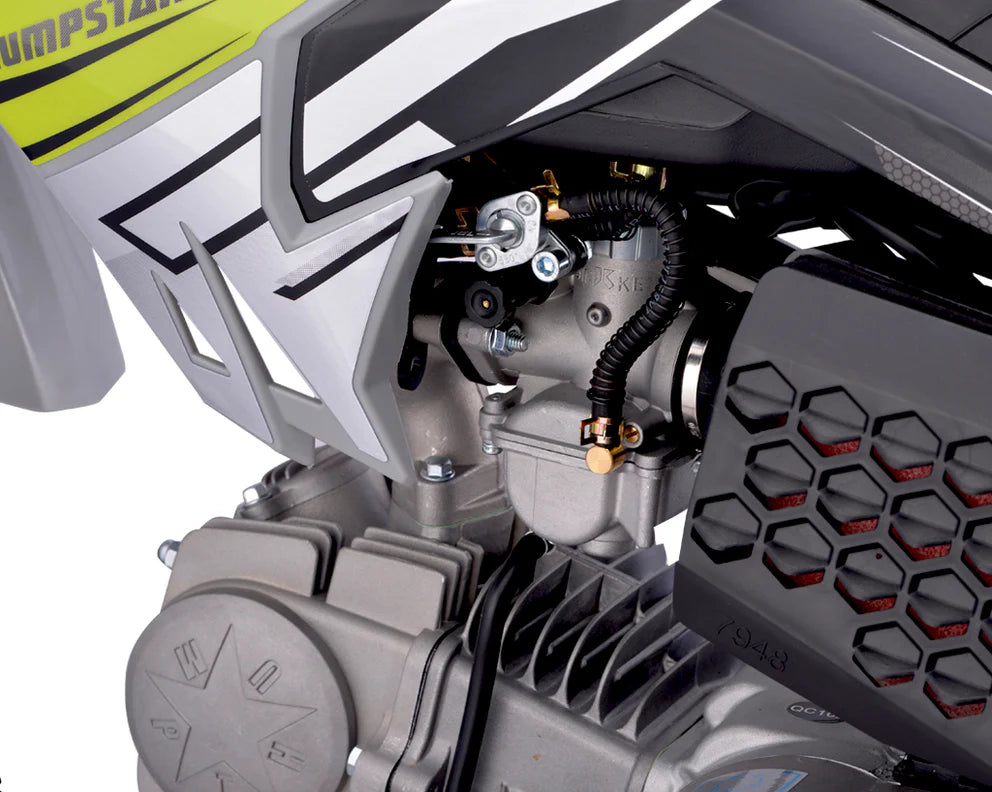

26mm carb
Reliability comes with using trusted brands of parts. The TSC140 now includes a 26mm carburetor, which allows us to faithfully say that the performance and reliability of these bikes have been greatly improved on from previous models.

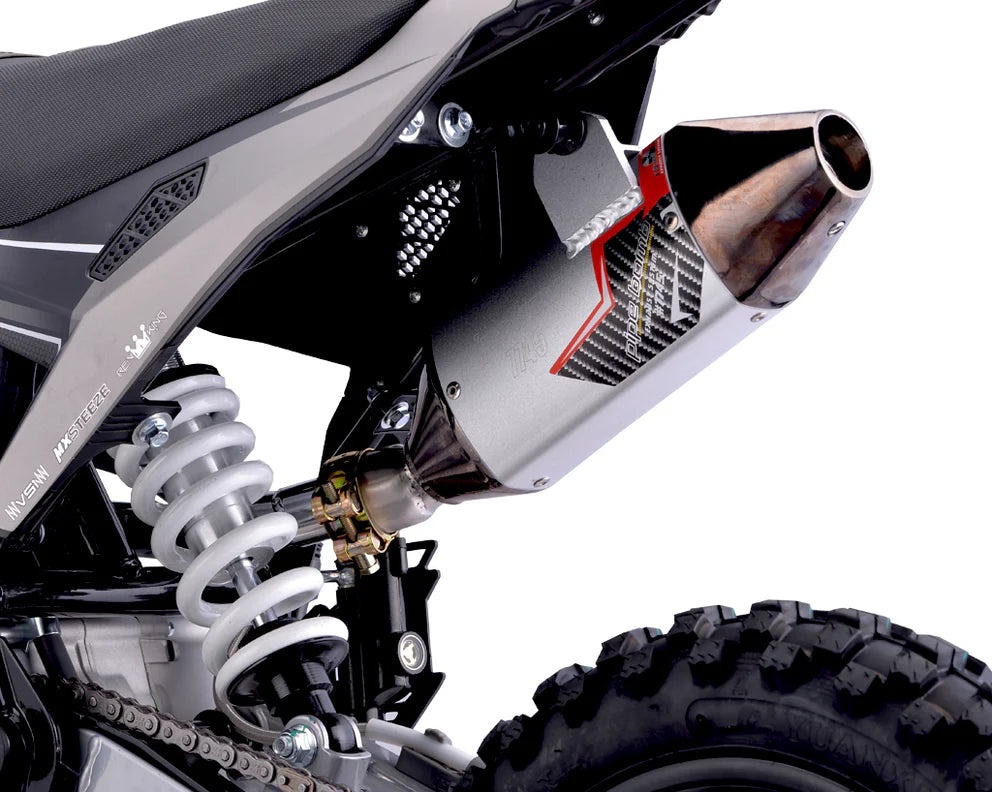

Header and Exhaust
Pipe Bomb 2.0 head pipe
A redesigned frame came with requirements for a new exhaust header. The new Pipe Bomb 2.0 head pipe from Thumpstar allows exhaust gasses to expand, cool, and ramp back up at a higher velocity when exiting. This results in a greater bottom, and low-end response while keeping the tuning in check for the top end.
GoPro Mount
Carry Box
Don't let your off-road experiences go undocumented. With the GoPro DirtBike Mount, you can capture every twist, turn, and jump in stunning HD quality, allowing you to relive your adrenaline-fueled moments again and again. Gear up and take your footage to the next level!

Specifications
ENGINE & TRANSMISSION | |
Engine | HS | 4 Stroke |
CC Rating | 140cc |
Gearbox | Manual | 4 speed(N1234) |
Starter | Kick |
Carburetion | PE 22 |
Exhaust | Standard 28mm Exhaust System |
Final Drive | 428 Chain |
Top Speed | 90kph(depending on gearing) |
SUSPENSION, BRAKES, & WHEELS | |
Suspension Front | Conventional Forks | Length 630mm | 33/40mm |
Suspension Rear | Mono shock | Length 285mm |
Brakes Front | Disc | Single Piston |
Brakes Rear | Disc | Single Piston |
Wheel & Tire Front | Steel Rim | 70/100-14 |
Wheel & Tire Rear | Steel Rim w/ Rim Lock | 80/100-12 |
DIMENSIONS & WEIGHT | |
Wheelbase (axle to axle) | 1060mm | 42" |
Seat Height | 780mm | 31" |
Product Weight N.W | G.W | 65/75kg | 143/165lbs |
Tank Capacity | 3 Litres | .80 gallon |
Product Packing Size | 1320x355x640mm | .31 m3 |
ENGINE & TRANSMISSION | |
Engine | HS | 4 Stroke |
CC Rating | 140cc |
Gearbox | Manual | 4 speed(N1234) |
Starter | Kick |
Carburetion | PE 22 |
Exhaust | Standard 28mm Exhaust System |
Final Drive | 428 Chain |
Top Speed | 90kph(depending on gearing) |
SUSPENSION, BRAKES & WHEELS | |
Suspension Front: | Conventional Forks | Length 630mm | 33/40mm |
Suspension Rear: | Mono shock | Length 285mm |
Brakes Front: | Disc | Single Piston |
Brakes Rear: | Disc | Single Piston |
Wheel & Tire Front: | Steel Rim | 70/100-14 |
Wheel & Tire Rear: | Steel Rim w/ Rim Lock | 80/100-12 |
DIMENSIONS & WEIGHT | |
Wheelbase (axle to axle): | 1060mm | 42" |
Seat Height: | 780mm | 31" |
Weight: N.W/G.W: | 65/75kg | 143/165lbs |
Tank Capacity: | 3 Litres | .8 Gallon |
Product Packing Size: | 1320x355x640mm | .31 m3 |
